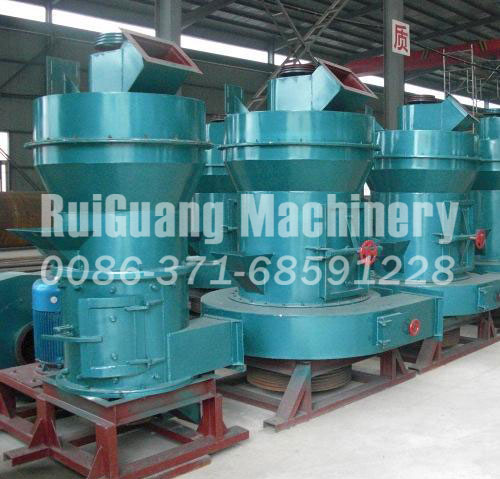

Raymond Mill



Brief Introduction to Ruiguang Raymond Mill

This machine adopts advanced structure of the same types of products in domestic and foreign market and is upgraded and improved on the basis of traditional Raymond mill. Compared with ball mill, this equipment has high grinding efficiency, low electricity consumption and small coverage size and one-time investment. The grinding roll tightly presses on the grinding ring under centrifugal force; for this reason, when the grinding roll and the grinding ring are abraded, the output and the fineness of the final products are not influenced. The changing cycle of the grinding roll and the grinding ring is long. The air separation flow of this machine cyclically flows inside the air blower, mill case, cyclone separator and air blower, so that compared with high-speed centrifugal crusher, this machine has little powder dust and the operational workshop is clean.

Application of Ruiguang New Raymond Mill

Ruiguang Raymond mill is widely used in ultrafine powder processing of barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, heat insulator and other non-flammable and non-explosive materials with Mok's hardness not more than 9.3 and humidity below 6%. The size of  R-type Raymond mill can be regulated within 80-325, and part of the materials can be as high as 600.

Main Structure of Raymond Mill

The machine consists of the host, analyzer, blower, cyclone separator, micro powder cyclone separator and air hose. Moreover, the host consists of rack, diffuser, shovel knife, grinding roll, grinding ring and housing.

Application of R-type Raymond Mill

R-type Raymond mill is used for grinding the barite, limestone, kaolin, ceramics, and slags which with the hardness below  9.3 of Mohs in the trades of mining, metallurgical industry, chemical engineering and building material for high fine powder generating and processing. The particle size of finished product can be adjusted from 80 to 325 meshes at random and the particle size of part materials can reach 2000 meshes at the maximum.

Raymond Mill Parameters

Model	6R4525	5R4119	4R3216	3R90	3R85	3R75	3R65	3R60
				4R90	4R85
Particle size of feed (mm)	<=30	<=25	<=25	<=25	<=20	<=20	<=15	<=15
Particle of finished product(mm)	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044
shift output at different material fine degree(t)	16-120	8-60	4-45	3-35	2-28	1.5-20	1-18	0.5-8
Rotate speed of central shaft (r/min)	82	105	130	160	160	160	180	280
Inner diameter of pulverzing ring (mm)	1770	1400	1073	973	885	865	725	495
Diameter of pulverizing roller(mm)	450	410	320	300	270	260	210	140
Height of pulverizing ring(mm)	250	190	160	160	150	150	150	100
Main motor	y315m- 4-132	y280s- 4-75	y225s- 4-37	y225m- 8-30	y225m- 8-22	y225s- 8-18.5	y200L- 8-15	y160m- 6-7.5
Fan motor	y315m- 4-132	y250m- 4-75	y200L- 4-37	y180m- 4-22	y160L- 4-15	y160L- 4-15	y160m- 4-11	y132s- 2-5.5
Analyzer motor	y160m- 4-11	yc200- 4B-7.5	yc120- 4a-5.5	y112m- 6-2.2	y112m- 6-2.2	y112m- 6-202	y112m- 6-2.2	y90L- 6-1.1
