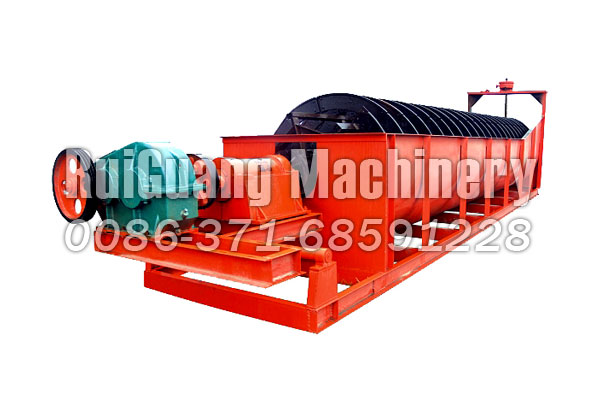

Spiral Classifier

Technical Process of Spiral Classifier

There are two types of spiral classifier, single spiral classifer and double spiral classifier. According to the spiral blade at the flooding end, there are two types: High weir type: the top side of spiral blade is higher than the flooding level and the center of blade is lower than the flooding level. This type is used for classification of the ore with flooding size between 0.083-0.15mm Immersed weir type: This type is used for classification of the ore with flooding size between 0.15-0.07mm. .

Spiral Classifier Technology Parameters

Model	Spiral diameter (mm)	Spiral rotation speed (r/min)	Trough length (mm<=)	Motor power(kw<=)		Dimensions(mm<=)			Weight (t)
				For driving	For lifting	Length	Width	Height	<=
FG-3	300	12-30	3000	1.1	----	3850	490	1140	0.7
FG-5	500	8-12.5	4500	1.1	----	5430	680	1480	1.9
FG-7	750	6-10	5500	3	----	6720	980	1820	3.1
FG-10	1000	5-8	6500	5.5	----	7590	1240	2380	4.9
FC-10			8400	7.5		9600	1240	2680	6.2
FG-12	1200	4-6	6500	7.5	2.2	8180	1570	3110	8.5
FC-12			8400	7.5	2.2	10370	1540	3920	11.0
2FG-12			6500	15	4.4	8230	2790	3110	15.8
2Fc-12			8400	15	4.4	10370	2790	3920	17.6
FG-15	1500	4-6	8300	7.5	2.2	10410	1880	4080	12.5
FC-15			10500	7.5	2.2	12670	1820	4890	16.8
2FG-15			8300	15	4.4	10410	3390	4080	22.1
2FC-15			10500	15	4.4	12670	3370	4890	30.7
FG-20	2000	3.6-5.5	8400	11-15	3	10790	2530	4490	20.5
FC-20			12900	11-15	3	15610	2530	5340	28.5
2FG-20			8400	22-30	6	11000	4600	4490	35.5
2FC-20			12900	22-30	6	15760	4600	5640	48.7
FG-24	2400	3.67	9130	15	3	11650	2910	4970	26.8
FC-24			14130	18.5	4	16580	2930	7190	41.0
2FG-24			9130	30	6	12710	5430	5690	45.8
2FC-24			14130	37	8	17710	5430	8000	67.9
2FG-30	3000	3.2	12500	40	8	16020	6640	6350	73.0
2FC-30			14300	---	---	17091	---	8680	84.8
