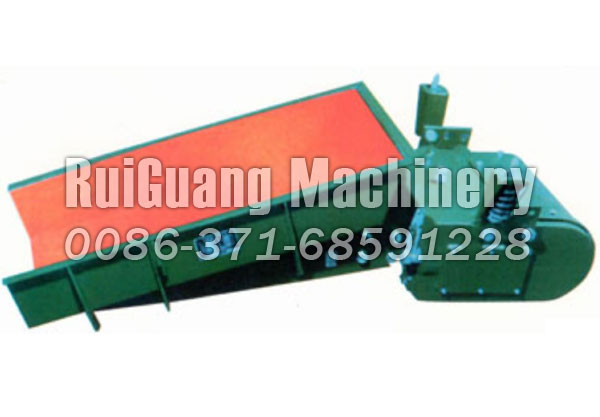

Electromagnetic Vibrating Feeder

Brief Introduction to Electromagnetic Vibrating Feeder

Electromagnetic vibrating feeder is a kind of linear direction feeding machine. It has features of smooth vibrating, reliable operation, long service life and suitable feeding. It is widely used in mining, building, silicate and chemical industries for crushing and screening.

Electromagnetic Vibrating Feeder Characteristics

(1) Small cubage, light weight, simple structure, easy installation, without movement assembly or lubrication.
(2) Electricmagnetic feeder consumes small electric energy.
(3) The feeding size has higher accuracy because it can change, start or end material flow instantaneously.
(4) During the usage, the feeding size can be adjusted easily. The production line is controlled automatically.
(5) The damage of chute is little because the materials in the chute are continuously thrown and move along the track of parabola.
(6) This series os electricvibrating feeder is not suitable for the flameproof conditions.

Parameters of Electromagnetic Vibrating Feeder

Model	Max. feeding (mm)	Pocessing capacity (t/h)	Motor power (kw)	Obliquity of material trough (o)	Total weight (kg)	Trough size (mm)	Dimensions (L*W*H) (mm)
GZD-650*2300	300	80	1.1*2	10	2798	650*2300	2300*1360*780
GZD-750*2500	350	100	1.1*2	10	3260	750*2500	2500*1460*780
GZD-850*3000	400	120	3*2	10	3607	850*3000	3110*1800*1600
GZD-1000*3600	500	150	5.5*2	5	3895	1000*3600	3850*1950*1630
GZD-1100*4200	580	240	5.5*2	5	4170	1100*4200	4400*2050*1660
GZD-1100*4900	580	280	7.5*2	5	4520	4900*1100	5200*2050*1700
GZD-1300*4900	650	450	11*2	5	5200	4900*1300	5200*2350*1750
GZD-1500*5600	1050	450-800	12*2	10	7500	1500*5600	5700*2000*1750
ZSW-380*95	500	96-160	11	0	4082	3800*960	3920*1640*1320
ZSW-490*110	630	120-280	15	0	5352	4900*1100	4980*1830*1320
ZSW-600*130	750	400-560	22	0	7800	6000*1300	6082*2580*2083
ZSW-600*150	800	500-700	30	0	10190	600*1500	6086*2660*1912
ZSW-600*180	800	700-1000	37	0	13750	600*1800	6310*3262*2230
