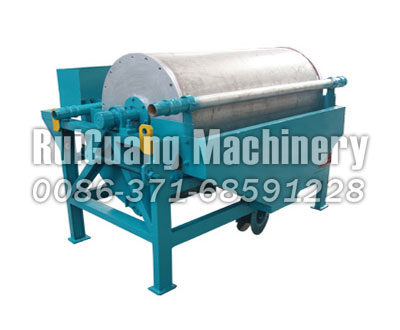

Magnetic Separator

Brief Introduction to Magnetic Separator

Magnetic separator is widely used for the wet magnetic separation of such materials whose granularity is below 3mm as magnetic iron ore, pyrrhotite, calcined ore and ilmenite in wood, mining, ceramic industry, chemistry and food and also for removing the iron contained in coal, non-metal ores and building materials. It is one of the separating machines that have the widest application in the mining industry. This series of magnetic separator machine has such as advantages of simple structure, high processing capacity, convenient operation and easy maintenance.

Advantages of China Magnetic Separator

1. Short magnetic circuit
2. Little magnetic flux leakage
3. High magnetic intensity
4. Low energy consumption
5. Fine beneficiating results
6. Simple structure and easy maintenance

Structural Introduction to Wet Magnetic Separator

Wet magnetic separator is composed of round cylinder, roll cylinder, brush roll, magnetic system, and trough and drive device. The round cylinder is welded by 2-3mm of corrosion resistant plate and the end cover is aluminum casting or work piece and is connected t the cylinder with stainless screws. The motor drives the round cylinder; magnetic roll and brush roll to rotate through the reducer or electrodeless adjustable-speed motor is directly used to drive them to rotate. The magnetic system is an open type and is installed inside the round cylinder. The magnetic blocks are installed on the baseboard of the magnet yoke with stainless bolts, and the axle of the magnet yoke stretches out of the cylinder and the end of the axle is fixed with connecting lever. The working area of the trough is made of corrosion resistant plate and the rack and other part of the trough are welded with common iron.

Magnetic Separator Technology Parameters

Model	Shell diameter(mm)	Shell length(mm)	Shell rotation speed (r/min)	Feeding size(mm)	Processing capacity (t/h)	Power(KW)
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-180	7.5
CTB1230	1200	3000	<18	3-0	100-180	7.5
CTB1530	1500	3000	<14	3-0	170-280	11
